Airmax<sup>®</sup> PondSeries<sup>™</sup>, Aerate up to 8 Acres

Airmax® PondSeries, Aerate up to 8 Acres

Aeration for Ponds up to 8 Acres

$1,399.99–$5,099.99
  • 600821 - PS10, 115V, No Airline
  • $1,399.99
  • 600822 - PS10, 115V, 100' of 3/8" Airline
  • $1,499.99
  • 600824 - PS10, 230V, No Airline
  • $1,499.99
  • 600825 - PS10, 230V, 100' of 3/8" Airline
  • $1,599.99
  • 600831 - PS20, 115V, No Airline
  • $1,899.99
  • 600832 - PS20, 115V, 200' of 3/8" Airline
  • $2,099.99
  • 600834 - PS20, 230V, No Airline
  • $1,999.99
  • 600835 - PS20, 230V, 200' of 3/8" Airline
  • $2,199.99
  • 600841 - PS30, 115V, No Airline
  • $2,099.99
  • 600842 - PS30, 115V, 300' of 3/8" Airline
  • $2,399.99
  • 600845 - PS30, 230V, No Airline
  • $2,199.99
  • 600846 - PS30, 230V, 300' of 3/8" Airline
  • $2,499.99
  • 600851 - PS40, 115V, No Airline
  • $2,699.99
  • 600855 - PS40, 115V, 400' of 3/8" Airline
  • $3,099.99
  • 600857 - PS40, 230V, No Airline
  • $2,799.99
  • 600858 - PS40, 230V, 400' of 3/8" Airline
  • $3,199.99
  • 600948 - PS80, 115V, No Airline
  • $4,899.99
  • 600949 - PS80, 230V, No Airline
  • $5,099.99

Airmax® PondSeries Aeration Systems are powerful enough to aerate ponds up to 8 acres and can be adapted to fit uniquely shaped ponds for maximum aeration. Diverse PondSeries Aeration Systems make aeration a breeze. The single plate PS10 system is excellent for small or regularly shaped ponds while the 8 plate PS80 tackles water bodies up to 8 acres or ponds with an irregular shape that require precision plate placement for even circulation. Airmax® PondSeries Aeration Systems are manufactured in the USA with high performance, SmartStart Technology and professional quality components.

The World's Best Aerator

Airmax® has re-engineered their line of pond aeration systems to bring you the World's Best Aerator:
• The Most Effective
• The Quietest
• The Most Efficient Pond Aeration System
• Airmax® Pond Aeration is The Easiest to Install

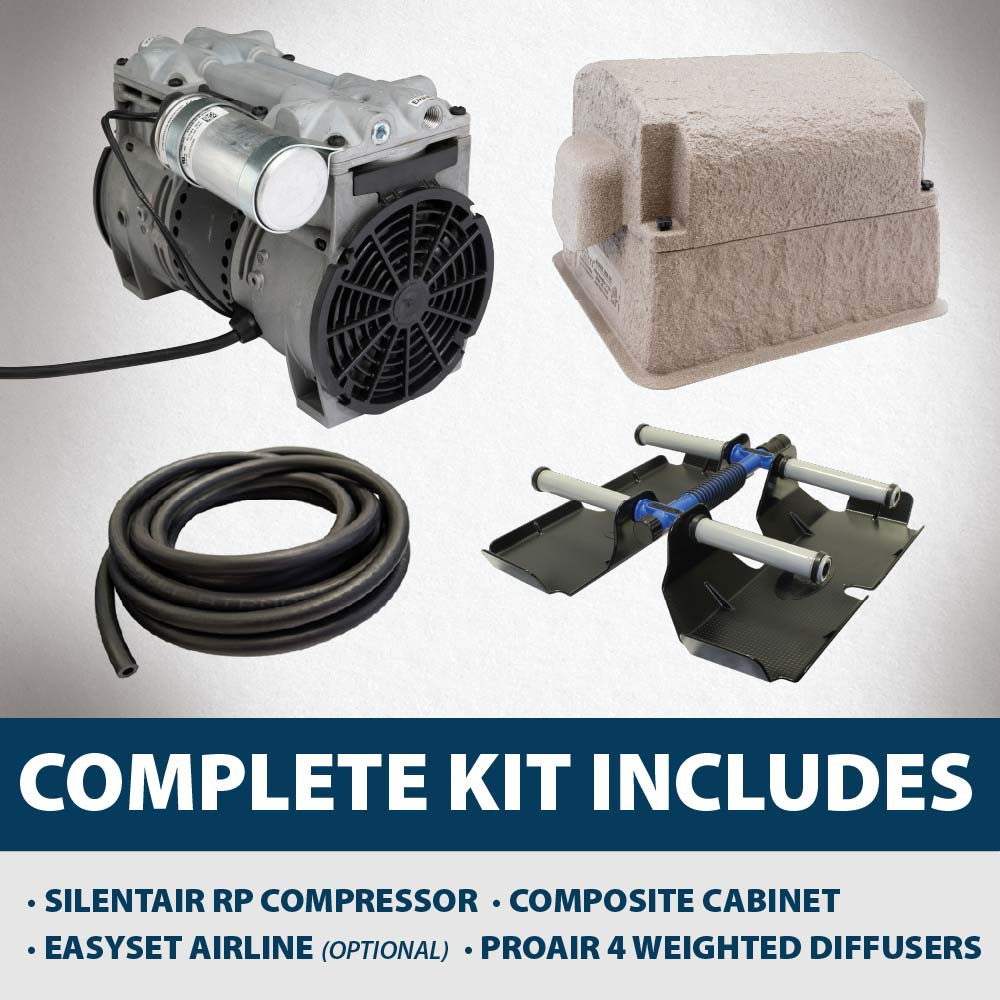

Airmax(r) PondSeries(tm) Aeration System Airmax(r) Pond Series(tm) Aeration Systems - PS10 PS20 PS30 PS40 PS80

ProAir4 Weighted Diffuser

  • PTFE Non-Stick 6" Membrane Diffuser Stick: Provides the synergies of air stones while being virtually maintenance-free
  • Check Valve: Prevents back pressure on the compressor
  • Innovative Sled Design: Keeps diffuser submerged while maintaining an upright position during installation
Airmax(r) PondSeries(tm) Aeration System Airmax(r) ProAir4(tm) Weighted Diffuser

SilentAir RP Series Compressor

  • High Efficiency Compressor with Rubber Mounts: Reduces noise & vibration to ensure silent operation
  • Air Filter: Maximizes the life of the compressor
  • SmartStart Technology: Protects compressor during pressurized restarts following power supply interruptions.
  • Airflow Manifold: Simplifies airflow management to individual diffusers (on systems with multiple diffusers)
  • Airline Quick Disconnects: For easy system removal & storage
  • Pressure Gauge & Relief Valve: Monitor system performance & safeguard from back pressure
Airmax(r) PondSeries(tm) Aeration System Airmax(r) SilentAir(tm) RP Series Compressors

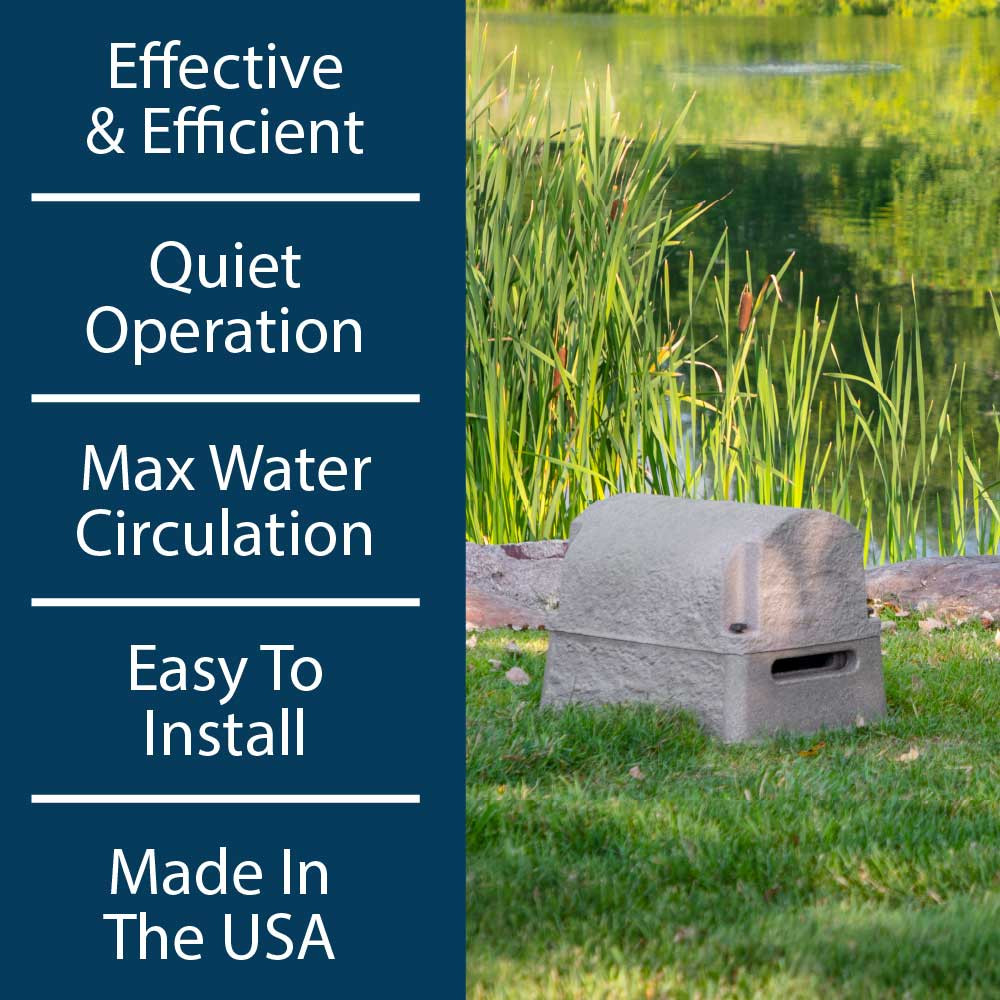

Airmax® Composite Cabinet

  • Enhanced Cooling System: Tunnels air flow evenly through the cabinet with a high flow cooling fan & high density air intake pre-filter to remove air debris
  • Composite Cabinet with Removal Top: Protects components while providing easy access
  • Elevated Base: Protects against damaging flood water
  • Pre-Wired Electrical Box: Simplifies electrical connections for easy setup
Airmax(r) PondSeries(tm) Aeration System Airmax(r) Composite Cabinet

Airmax® EasySet Airline

  • Self-Weighted: No bricks, weights or ties are needed. This airline is kink-free & fish hook resistant.
  • Direct Burial: Use from power source to pond's edge. Remote valve box controls available for longer runs.
Airmax(r) PondSeries(tm) Aeration System Airmax(r) EasySet(tm) Airline - Self-Weighted Direct Burial

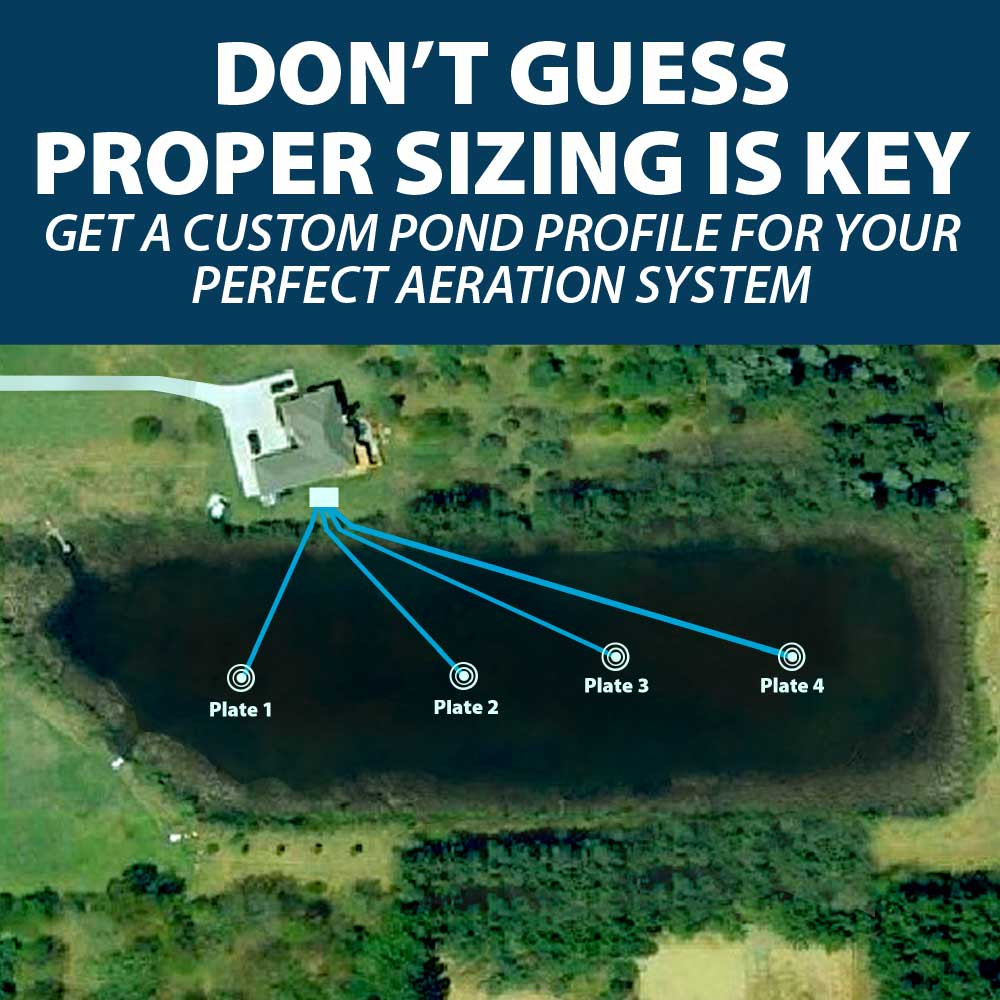

Aeration Mapping Service

Not sure which Airmax® Aeration System is right for you? Let us size it and we will guarantee the results!
We provide a FREE aerial mapping service. Get guaranteed results when we measure your pond's size and map where the diffusers should be placed. Call today to speak to one of our aeration experts! 866-POND-HELP (866-766-3435) or use the Web Aeration Mapping Form to submit your Aerial Mapping Request.

Airmax(r) PondSeries(tm) Aeration System Airmax(r) Aeration Aerial Mapping

View our Field Study to learn how Airmax® pond aeration improved fisheries, reduced growth and muck in Fox Lake in a single season.

Tech Specs

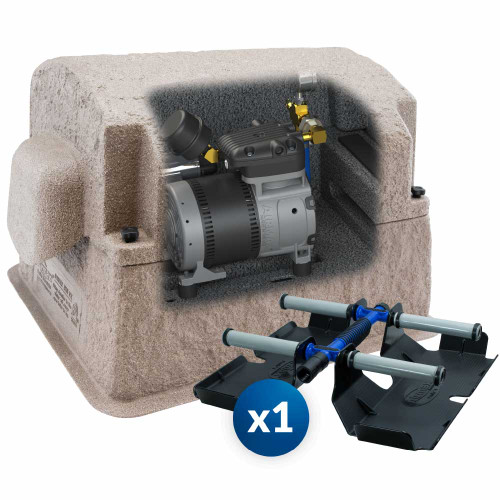

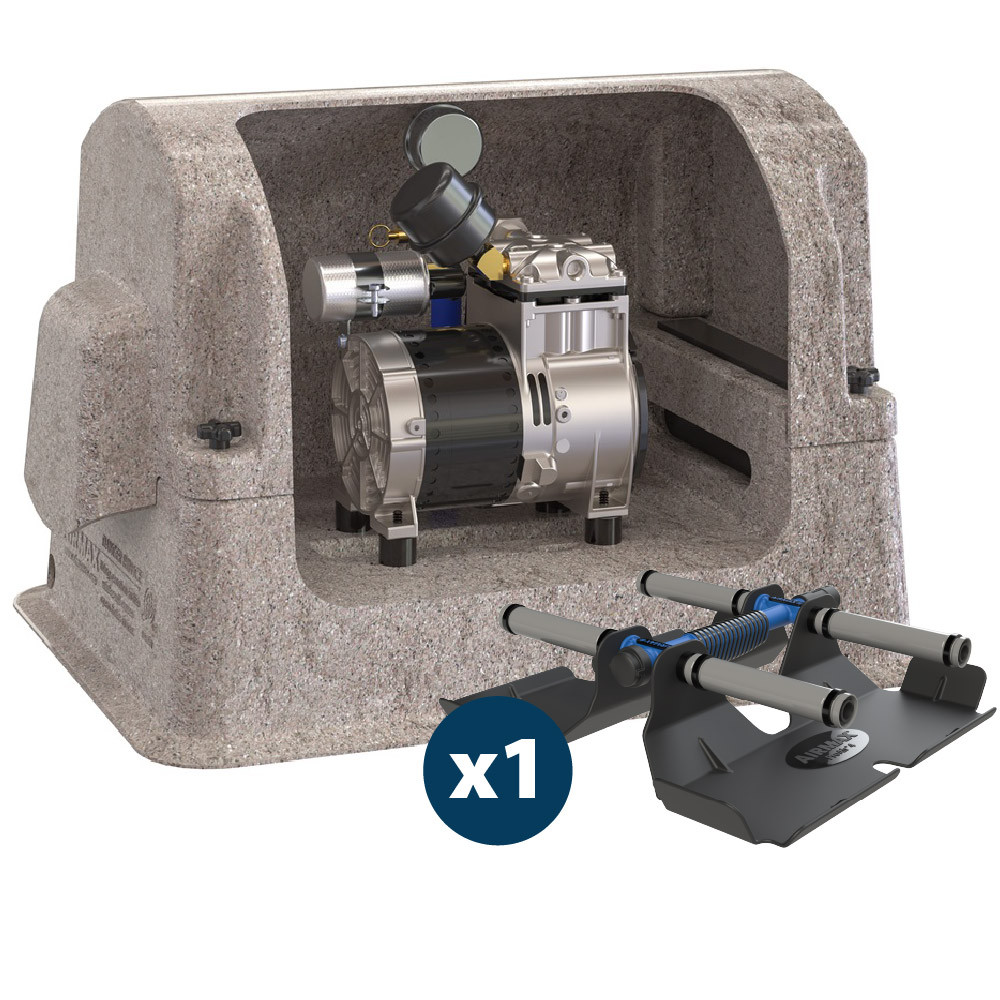

Airmax(r) PondSeries(tm) Aeration System - PS10
PS10
Airmax(r) PondSeries(tm) Aeration System - PS20
PS20
Airmax(r) PondSeries(tm) Aeration System - PS30
PS30

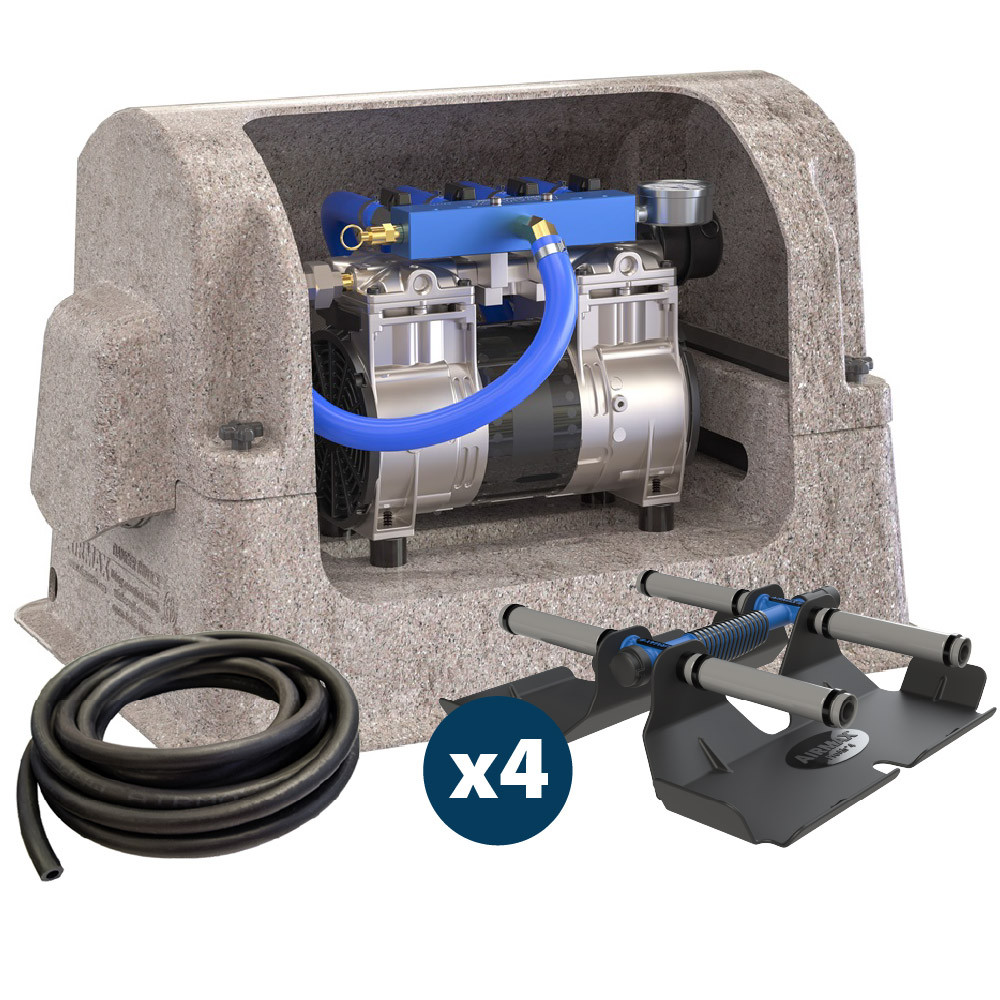

Airmax(r) PondSeries(tm) Aeration System - PS40
PS40
Airmax(r) PondSeries(tm) Aeration System - PS80
PS80
ProAir™4 Weighted Diffusers 1 2 3 4 8
Max Pond Size 1 Acre 2 Acres 3 Acres 4 Acres 8 Acres
Aerates Pond at 6'-9' Depth Up To 1/4 Acre Up To 1/2 Acre Up To 1-1/2 Acres Up To 2 Acres Up To 4 Acres
Aerates Pond at 9'-12' Depth Up To 1/2 Acre Up To 1 Acre Up To 2 Acres Up To 3 Acres Up To 6 Acres
Aerates Pond at 12'-21' Depth Up To 1 Acre Up To 2 Acres Up To 3 Acres Up To 4 Acres Up To 8 Acres
Max Diffuser Depth
w/o Deep Water Kit
21' 21' 21' 21' 21'
Max Diffuser Depth
w/Deep Water Kit
50' 50' 50' 50' 50'
SilentAir Rocking Piston Compressor RP25 1/4-HP RP50 1/2-HP RP50 1/2-HP RP75 3/4-HP (2) RP75 3/4-HP
Running Amps 1.6 or 0.8 4.1 or 2.1 4.1 or 2.1 6.8 or 4.4 10.6 or 5.3
Voltage 115 or 230 115 or 230 115 or 230 115 or 230 115 or 230
Max CFM 2.3 4.7 4.7 5.8 11.6
Monthly Operating Cost (24/7)* $9.27 $23.76 $23.76 $30.72 $61.44
3/8" EasySet™ Weighted Airline Options None, 100' None, 200' None, 300' None, 400' None
Cabinet Dimensions 23"L x 17"W
x 15"H
23"L x 17"W
x 15"H
23"L x 17"W
x 15"H
23"L x 17"W
x 15"H
27"L x 24"W
x 18.75"H
Power Cord 6' 6' 6' 6' 6'
ProAir™4 Diffuser Warranty 5 Years 5 Years 5 Years 5 Years 5 Years
Compressor & Electrical Warranty 2 Years 2 Years 2 Years 2 Years 2 Years
Composite Cabinet Warranty Lifetime Warranty Lifetime Warranty Lifetime Warranty Lifetime Warranty Lifetime Warranty
EasySet™ Airline Warranty 5 Years 5 Years 5 Years 5 Years 5 Years


*Monthly Operating Cost was calculated at $0.07 per kilowatt hour. Please note that costs will vary depending on location.

When To Use Aeration

Airmax® PondSeries Aeration Systems provide continuous circulation and aeration and for ponds and lakes up to 21' deep (or up to 50' when a deep water kit is installed with 5/8" airline. By aerating your pond from the bottom up, you'll circulate incredible amounts of water, drastically increasing the dissolved oxygen levels in your water column. This allows for increased levels of beneficial bacteria to accumulate in your pond resulting in reduced pond odors and muck accumulation.

Instructions for Ponds 22' - 50' Deep

When installing an aeration system for ponds that are 22' - 50' deep you will need to purchase the following for optimal performance:

• Buy Airmax® PondSeries Aeration System without Airline
• Buy Airmax® Deep Water Kit
• Buy 5/8" EasySet Weighted Airline
• Optional 5/8" Direct Burial Tubing if power source is away from the pond's edge.

Still not sure which Airmax® Aeration System is right for you? Call our aeration experts for a FREE aerial mapping service. 866-POND-HELP (866-766-3435) or use the Web Aeration Mapping Form.

How To Use Aeration

Airmax® PondSeries Aeration Systems can be installed at the edge of your pond or at a 115 volt* power source several hundred feet away utilizing Airmax® Direct Burial Airline**. The Airmax® Composite Cabinet using EasySet Weighted Airline** and fitting sets. The ProAir4 Weighted Diffuser(s) should be placed near the deepest areas of your pond and distributed equally to promote adequate aeration throughout the entire water body. Airmax® PondSeries Aeration Systems are designed to run 24/7 year-round***. Be sure to follow the included installation instructions when running your Airmax® Aeration System for the first time.

*Airmax® PondSeries Aeration Systems are also available for 230 voltage power sources. Please call for additional information 866-766-3435
**Airmax® Direct Burial Airline is not included but should be used when trenching airline underground while Airmax® EasySet Weighted Airline is intended for underwater use.
***When running your aeration system for the first time be sure to follow the start-up instruction in your user manual to prevent pond turn-overs and fish kills. If you use your pond for recreation in the winter you should turn off and store your aeration system as it creates thin ice and potential fall-through hazards.

Diffuser Placement Guide

Airmax(r) Aeration Mapping
PS10 Rectangle
PS10 Circle
PS20 Kidney
PS20 Oval
Airmax(r) Pond Series(tm) Aeration Diffuser Placement PS10 Rectangle
Airmax(r) Pond Series(tm) Aeration Diffuser Placement PS10 Round
Airmax(r) Pond Series(tm) Aeration Diffuser Placement PS20 Kidney
Airmax(r) Pond Series(tm) Aeration Diffuser Placement PS20 Oval

PS30 Irregular
PS30 Oval
PS40 Rectangle
PS40 Irregular
Airmax(r) Pond Series(tm) Aeration Diffuser Placement PS30 Irregular
Airmax(r) Pond Series(tm) Aeration Diffuser Placement PS30 Oval
Airmax(r) Pond Series(tm) Aeration Diffuser Placement PS40 Rectangle
Airmax(r) Pond Series(tm) Aeration Diffuser Placement PS40 Irregular


Still not sure which Airmax® Aeration System is right for you? Let us size it and we will guarantee the results!
We provide a FREE aerial mapping service. Get guaranteed results when we measure your pond's size and map where the diffusers should be placed. Call today to speak to one of our aeration experts! 866-POND-HELP (866-766-3435) or use the Web Aeration Mapping Form.

Documentation

Usage Information

Replacement Parts

Here are the replacement parts for Airmax ® PondSeries ™ , Aerate up to 8 Acres.


Weeds Treated

The first step towards effectively treating any pond weed is proper identification. Airmax® PondSeries, Aerate up to 8 Acres is recommended for use against each of the weeds listed below. Click on your desired weed for more information and alternate control options.

  • Airmax(r) Aeration Installation Video Airmax® Aeration Installation

    Learn how to install your Airmax® Aeration System.

  • The Airmax(r) Ecosystem(tm) Video The Airmax® Ecosystem

    Learn about the revolutionary proactive pond management approach. By understanding your pond's life cycle, and with the help of Airmax® Aeration, Natural Bacteria and Pond Dye, you can learn just how easy pond management can be.
