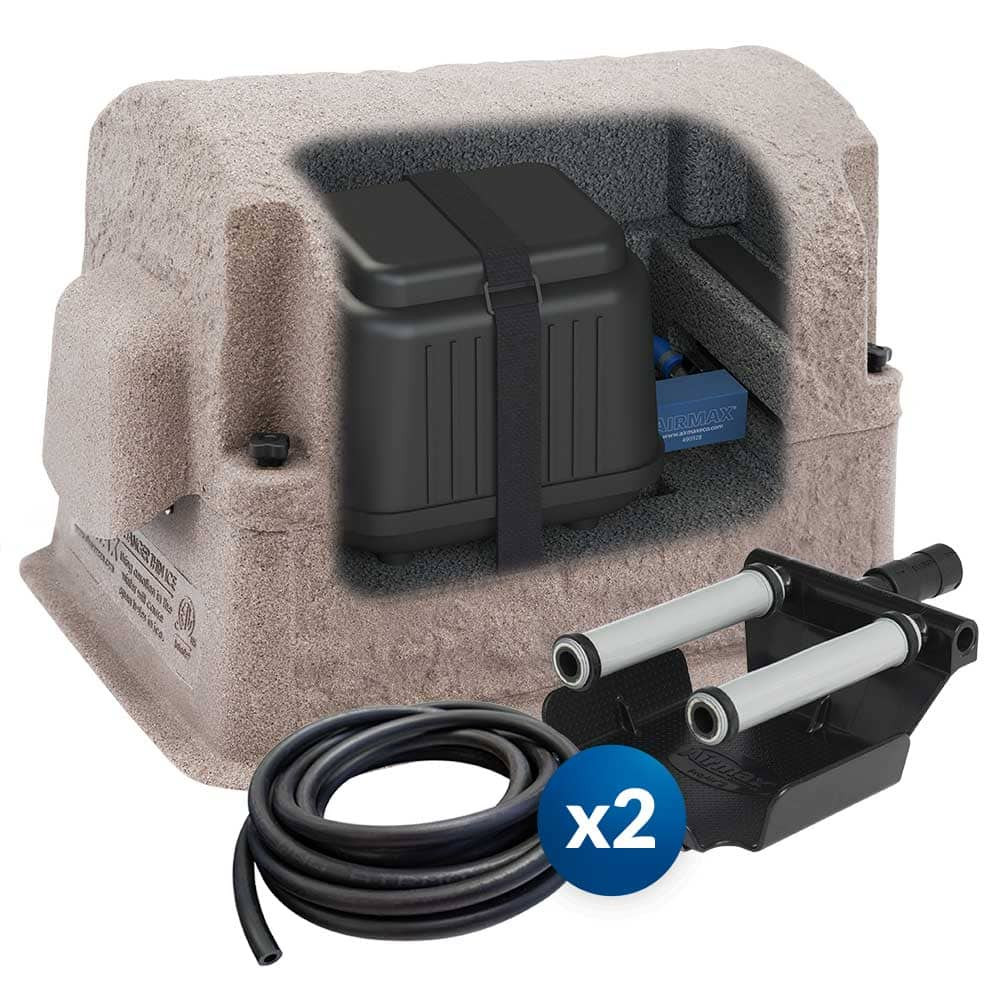

Airmax® Shallow Water Series™
Airmax® Shallow Water Series™ Aeration Systems are designed to provide maximum aeration and circulation in even the shallowest bodies of water. These systems are ideal for ponds that typically require multiple aeration plates due to depth restrictions. A powerful, yet extremely energy efficient, dual diaphragm compressor delivers air to the virtually maintenance-free ProAir™2 Weighted Diffusers. Airmax® Shallow Water Series™ Aeration Systems are manufactured in the USA with high performance, professional quality components.
The World's Best Aerator
Airmax® has re-engineered their line of Aeration Systems to bring you the World's Best Aerator:
• The Most Effective
• The Quietest
• The Most Efficient
• The Easiest to Install
View our Field Study to learn how Airmax® Aeration improved fisheries, reduced growth and muck in Fox Lake in a single season.
ProAir2™ Weighted Diffuser
• PTFE Non-Stick 6" Membrane Diffuser Stick: Provides the synergies of air stones while being virtually maintenance-free
• Check Valve: Prevents back pressure on the compressor
• Innovative Sled Design: Keeps diffuser submerged while maintaining an upright position during installation
SilentAir™ LR Series Compressor
• High Efficiency Compressor with Rubber Mounts: Reduces noise & vibration to ensure silent operation
• Air Filter: Maximizes the life of the compressor
• Airflow Manifold: Simplifies airflow management to individual diffusers
• Airline Quick Disconnects: For easy system removal & storage
Airmax® Composite Cabinet
• Enhanced Cooling System: Tunnels air flow evenly through the cabinet with a high flow cooling fan &high density air intake pre-filter to remove air debris
• Composite Cabinet with Removal Top: Protects components while providing easy access
• Elevated Base: Protects against damaging flood water
• Pre-Wired Electrical Box: Simplifies electrical connections for easy setup
Airmax® EasySet™ Airline
• Self-Weighted: No bricks, weights or ties are needed. This airline is kink-free & fish hook resistant.
• Direct Burial: Use from power source to pond's edge. Remote Manifold Kits are available for longer runs.
Aeration Mapping Service
Not sure which Airmax® Aeration System is right for you? Let us size it and we will guarantee the results!
We provide a FREE aerial mapping service. Get guaranteed results when we measure your pond's size and map where the diffusers should be placed. Call today to speak to one of our aeration experts! 866-POND-HELP (866-766-3435) or use the Web Aeration Mapping Form to submit your Aerial Mapping Request.
From product dimensions to operation manuals, the TECH SPECS tab contains all of the information you need to choose the right equipment for your pond.
|ProAir™2 Diffuser Plates||2||4|
|Max Pond Size||Up to 1/4 Acre||Up to 1/2 Acre|
|Max Diffuser Depth||6'||6'|
|Monthly Operating Cost (24/7)*||$2.52||$5.04|
|3/8" EasySet™ Weighted Airline Options||None, 100', 200'||None, 200', 400'|
|Cabinet Dimensions||23"L x 17"W x 15"H||23"L x 17"W x 15"H|
|ProAir™2 Diffuser Warranty||5 Years||5 Years|
|Compressor & Electrical Component Warranty||2 Years||2 Years|
|Composite Cabinet Warranty||Lifetime Warranty||Lifetime Warranty|
|EasySet™ Airline Warranty||5 Years||5 Years|
*Monthly Operating Cost was calculated at $0.07 per kilowatt hour. Please note that costs will vary depending on location.
When To Use Aeration
Airmax® Shallow Water Series™ Aeration Systems can be used in ponds 6 feet in depth or less where standard bottom diffuser aeration systems become less effective and economical. Ideal for shallow water bodies like retention ponds, the Shallow Water Series™ will provide continuous circulation and aeration, which combats problems with algae, weeds, odors and muck accumulation. By aerating your pond from the bottom up, you'll circulate incredible amounts of water, drastically increasing the dissolved oxygen levels in your water column. In turn, this allows for increased levels of beneficial bacteria to accumulate in your pond.
How To Use Aeration
Airmax® Shallow Water Series™ Aeration Systems can be installed at the edge of your pond or at a 115 volt power source up to 1,000 feet away utilizing Airmax® Direct Burial Airline*. The Airmax® Composite Cabinet protects the aeration compressor components from the elements and does not need to be placed indoors. The ProAir™2 Weighted Diffuser can be connected to the SilentAir™ LR Series Compressor using EasySet™ Weighted Airline* and fitting sets. The ProAir™2 Weighted Diffuser should be placed near the deepest areas of your pond and distributed equally to promote adequate aeration throughout the entire water body. Airmax® Aeration Shallow Water Series™ are designed to run 24/7 year-round**. Be sure to follow the included installation instructions when running your Airmax® Shallow Water Series™ Aeration Systems for the first time.
*Airmax® Direct Burial Airline is not included but should be used when trenching airline underground while Airmax® EasySet™ Weighted Airline is intended for underwater use.
**When running your aeration system for the first time be sure to follow the start-up instructions in your user manual to prevent pond turn-overs and fish kills. If you use your pond for recreation in the winter, you should turn off and store your aeration system as it creates thin ice and potential fall-through hazards.
Diffuser Placement Guide
Still not sure which Airmax® Aeration System is right for you? Let us size it and we will guarantee the results!
We provide a FREE aerial mapping service. Get guaranteed results when we measure your pond's size and map where the diffusers should be placed. Call today to speak to one of our aeration experts! 866-POND-HELP (866-766-3435) or use the Web Aeration Mapping Form.
Airmax® Aeration Installation
Learn how to install your Airmax® Aeration System.
The Airmax® Ecosystem™
Learn about the revolutionary proactive pond management approach. By understanding your pond's life cycle, and with the help of Airmax® Aeration, Natural Bacteria and Pond Dye, you can learn just how easy pond management can be.
