Atlantic™ Triton™ Universal Check-Valve Assembly
Click to Enlarge
$59.99

490270

Shipping:

This item ships via motor freight and may arrive separate from the rest of your order
This item ships from the manufacturer and may arrive separate from the rest of your order
Live Koi ship from our hatchery and may arrive separate from the rest of your order
Plants ship in accordance with your climate zone & are excluded from our free shipping promotion
Not sure which climate zone you're in? Find out here!
This item ships via ground carrier and will arrive within 4-8 business days

  • Details
  • Tech Specs
Atlantic(tm) Triton(tm) Universal Check Valve Assembly
  • Simplify Pump Installation & Removal
  • Unique, Universal Design
  • Works With 1-1/2" or 2" PVC Fittings

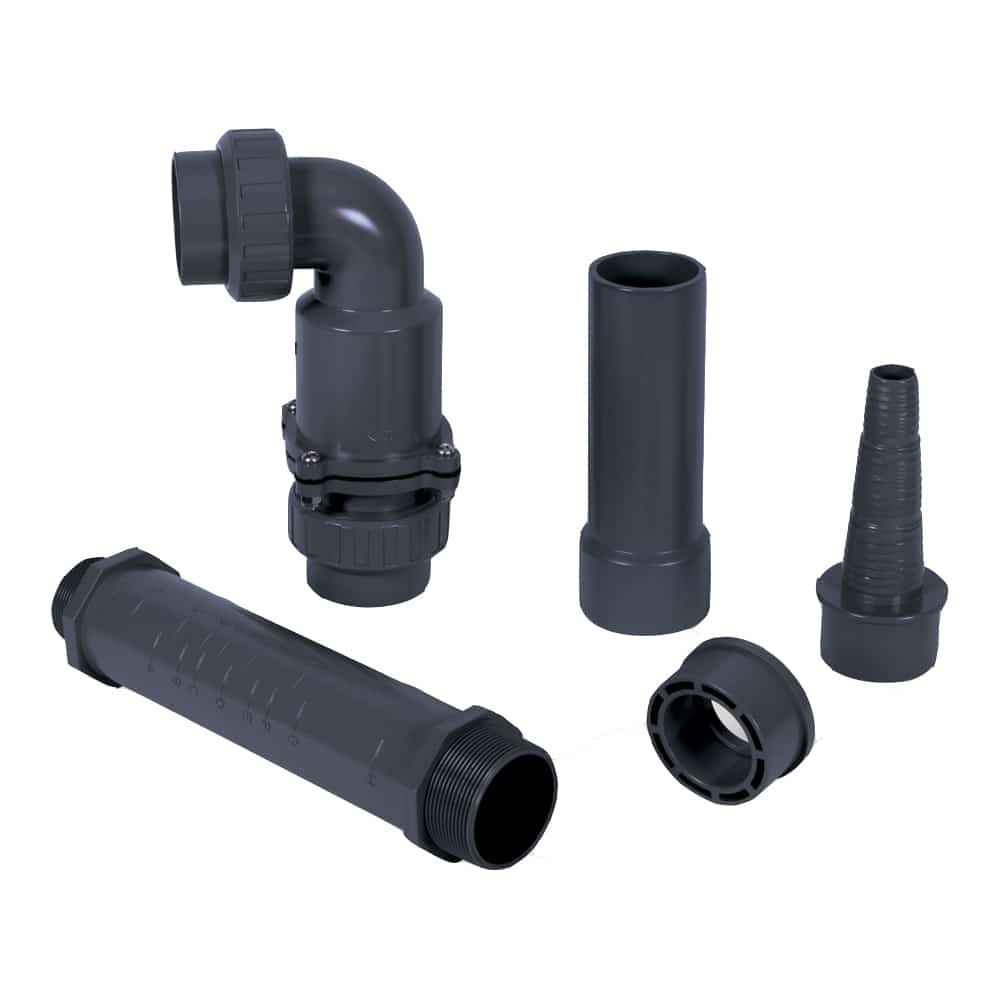

The Atlantic™ Triton™ Universal Check Valve Assembly is the only check valve on the market today that was designed exclusively for the water garden industry. The unique and functional "swing style" assembly features a 2" socket union on the inlet, 2" or 1-1/2" socket unions for the outlet, a molded in 90 elbow, and a slim design that allows clearance when installed with direct drive pumps.

Tech Specs

From product dimensions to operation manuals, the TECH SPECS tab contains all of the information you need to choose the right equipment for your pond.

Atlantic(tm) Triton(tm) Universal Check Valve Assembly
Universal Check Valve
Valve Dimensions 3-1/2" W x 5-5/8" L x 10" H
Valve Inlet 2" Socket
Valve Outlet 1-1/2" or 2" Socket
Pipe Dimensions 2-5/8" W x 11-7/8" L
Pipe Inlet 1-1/2" or 2" MPT
Pipe Outlet 2" Schedule 40 pipe

How To Use

Place the pump inside the skimmer or pump vault being used. Measure the distance between the center of the outlet pipe and the top of the pump discharge. Subtract 7" from this number. This is the cut-to-fit reference mark, with 1" cut-to-fit reference marks are molded in both directions on the discharge pipe. Locate the thread size needed for your pump and count up from there until you find the correct mark. Cut the discharge pipe and follow the instructions above to complete installation.

If your cut-to-fit reference number is larger than 9 ½", you will need to extend the discharge pipe. This can easily be done using standard 2" PVC pipe and fittings.

When To Use

Use on any pump installation where pond water backflow must be stopped, or where the pump will need to be removed quickly. Each of the 2, 2" unions used on the Triton™ Universal Check Valve make it very easy to remove, replace, or service pumps without the need of any special tools or cutting the PVC tubing.
